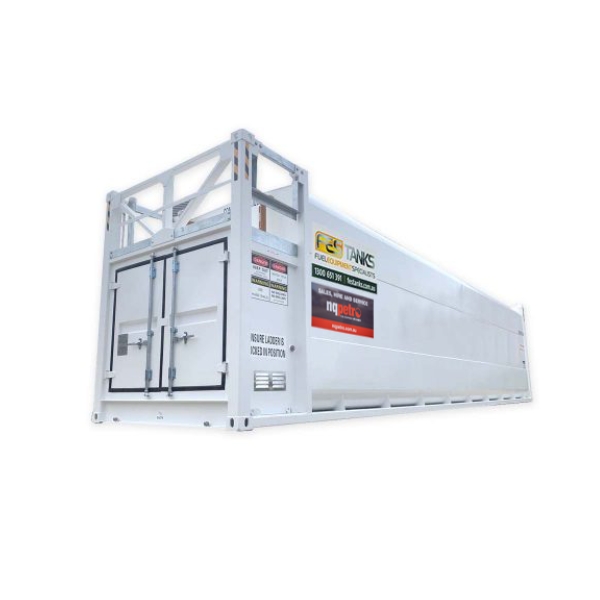

75,000 Litre Self-Bunded Fuel Storage Tank
The GRANDE75 tank range incorporates double-contained self-bunded fuel storage with no self-contained pump bay at the front of the unit.
The Grande Tank Range is certified to Australian Standards:
- AS1692 – Steel tanks for flammable and combustible liquids
- AS1940 – The storage and handling of flammable and combustible liquids
Tanks also comply with ISO (International Standards Organisation) requirements for weight and size on intermodal shipping containers and come complete with standard castings to accommodate the “twistlock” locking system. ISO standards ensure the fast and easy movement of all Grande Tanks from ship to rail, to truck, to site.
Key Specifications
- Tank Volume: 75,000 litres
- Safe Fill Level: 71,250 litres
- Tank Length: 12,192 cm
- Tank Width: 2,438 cm
- Tank Height: 2,896 cm
- Tank Weight: 14,450 Kg
Incoming Fuel/Product Features
- 80nb tanker fill point
- Fire-safe flanged isolation ball valve with 3″ camlock adaptor and cap
- Mechanical overfill protection valve
- Internal pipework
- Electronic high-level overfill alarm – hazardous-rated with battery-powered backup
