50001 Series DC Submersible Pump Kits
The 50001 Series DC Submersible Pump Kits are ideal for transferring diesel, water, coolant, or light oils up to SAE20. These pumps are perfect for quick transfer jobs in submerged environments. They are widely used in industries like mining, construction, agriculture, transport, and fishing.

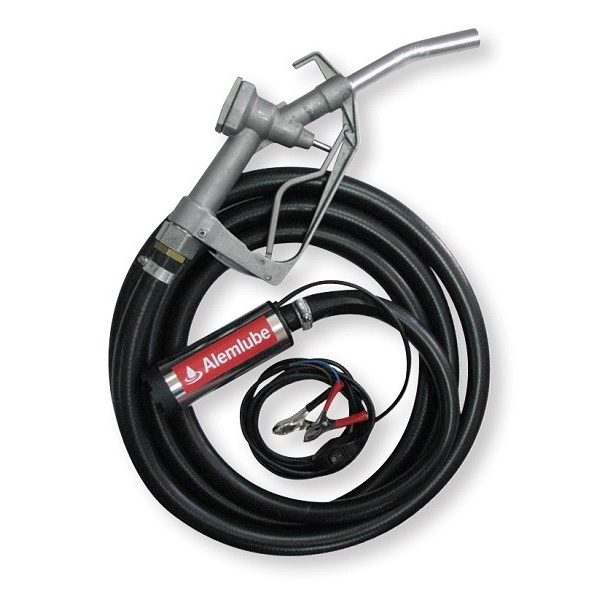

Each kit includes a pump, 4 metres of ¾” ID rubber hose, a manual nozzle, and 4 metres of battery cable with an on/off switch and clamps. The pump delivers flow rates of up to 32 litres per minute. It operates with a 20-minute duty cycle and ensures efficient performance. The aluminium alloy shell has increased thickness, which makes it more durable. It protects the casing from rust and corrosion. The base filter includes a stainless steel screen to keep the pump and fluid free from contamination.
Specifications
- Flow rate: Up to 32 L/min
- Made from aluminium alloy
- Motor speed: 8700 R/min
- Rated voltage with maximum load current: 5A (110W power)
- Pump life: Approximately 500–600 hours
- Delivery cycle: 20 minutes
Operating Instructions and Advice
- Clean and flush the pump to remove contamination before submerging it into clean fluid.
- Always remove the pump from the fluid after use.
- The motor is fast with low noise.
- Good seals ensure no leakage prolonging the service life.
- With the latest aluminium alloy shell, shell thickness is increased making the housing stronger and harder to deform. The aluminium
- alloy shell prevents the casing from rust and corrosion.
- At the base of the pump is a stainless steel filter screen minimising contamination.
- The filter is threaded for convenient disassembly, repair and replacement.
- Power supply comes with a second midway switch for convenient operation.
- Pump outlet diameter 19.5mm, delivers up to 30L/min.
- Outlet diameter of the oil hose 19mm-20mm.
- Width: 58 cm
- Height: 38 cm
- Depth: 20 cm
- Weight: 5 kg
Important to note
Do not exceed 20 minutes continuous run time
Open the nozzle before using the pump. Stem and pump with no-load operation.
Before use confirm whether the power and pump labelling voltage line has a voltage tolerance of ±5%. Note the positive and negative polarity.
