Custom Jet A1 Refuelling System

Nqpetro is proud to showcase our latest project—
The Grande 30 Jet A1 Tank, built by FES Tanks and fully customised by our team to deliver a seamless unloading and dispensing solution.

Location: Remote Airfield

Client: Metro Mining

Service: Jet A1 Refuelling System

Max Flow Rate

0 LPM

Hose Reel

0 m

Fuel Storage

0 L

Custom Jet A1 Refuelling System

Project Overiew

Designed for remote mine site airfields, this portable, turnkey system ensures efficient, reliable aircraft refuelling, giving our client greater flexibility and smoother operations in even the most challenging locations.

Custom Jet A1 Refuelling System

Key Features

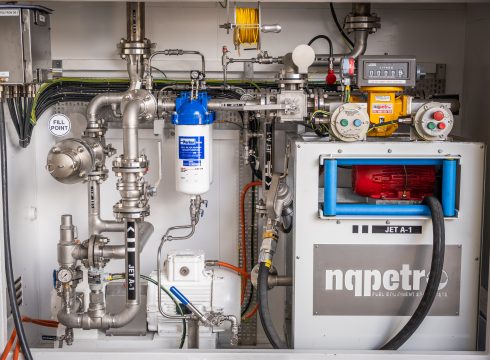

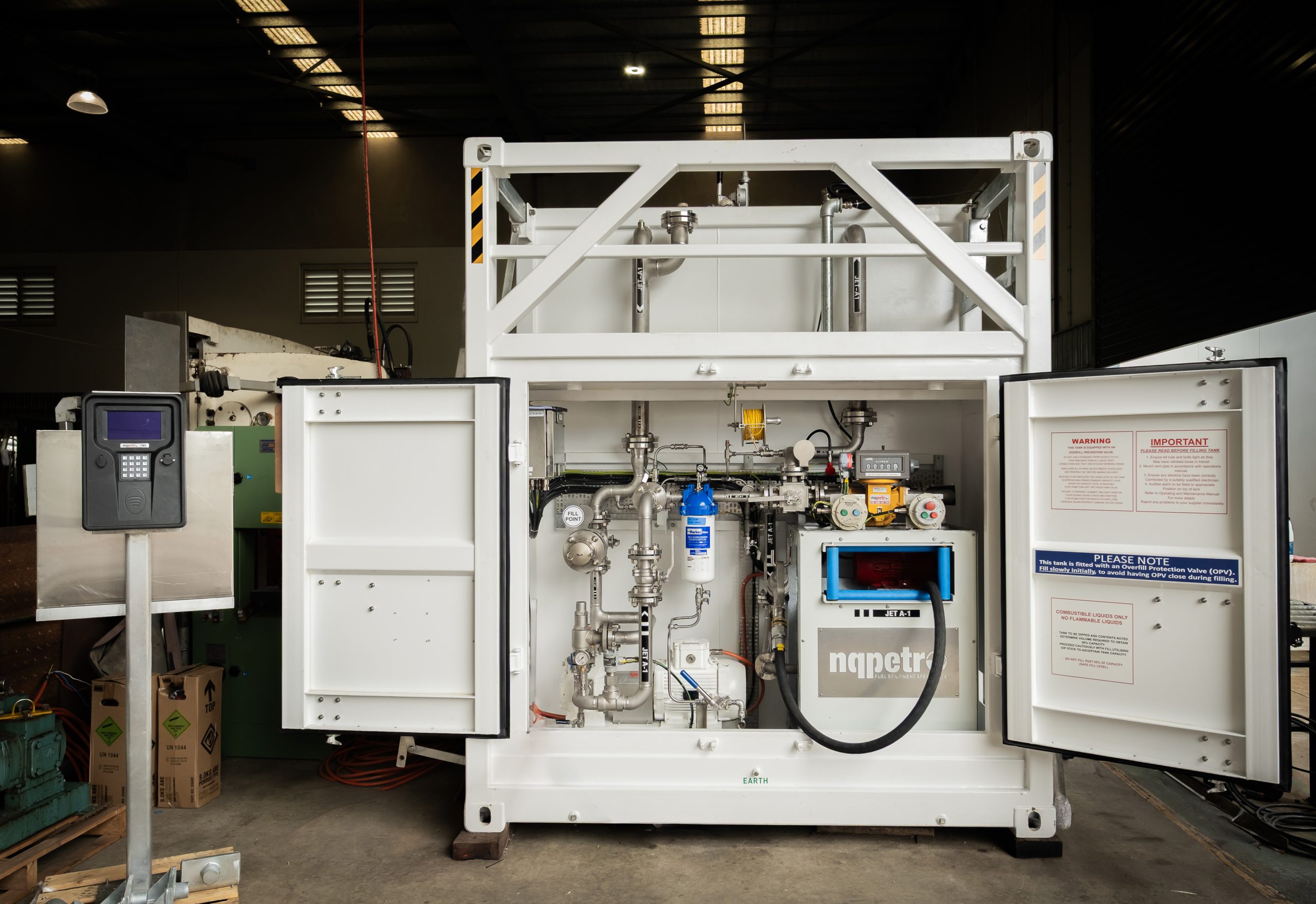

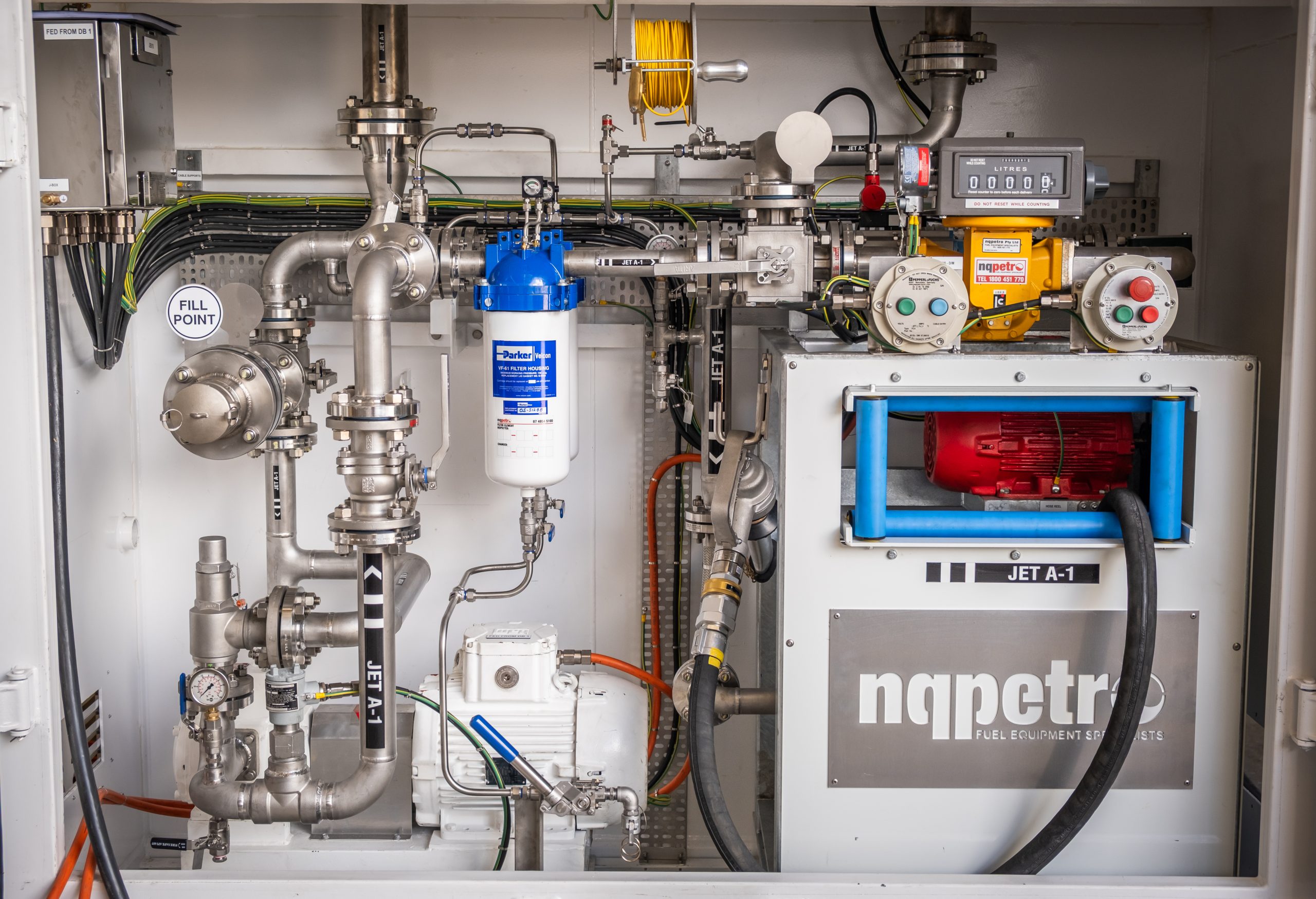

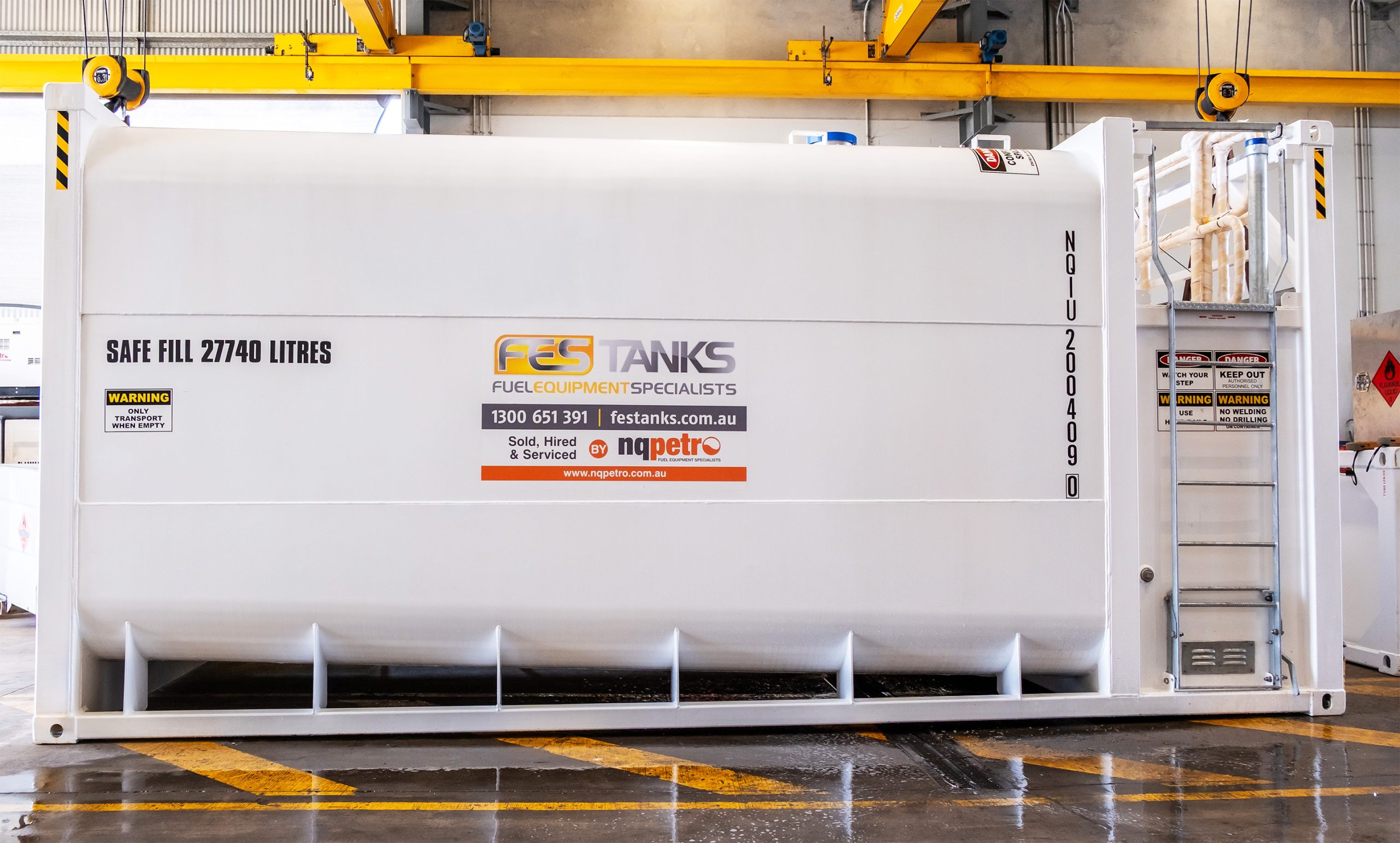

FES Grande 30 Self-Bunded Tank – built to AS1940 standards with a capacity of 30,000L

Ebsray V20 4KW Sliding Vane Pump – High-flow 415V pump for efficient Jet A1 dispensing

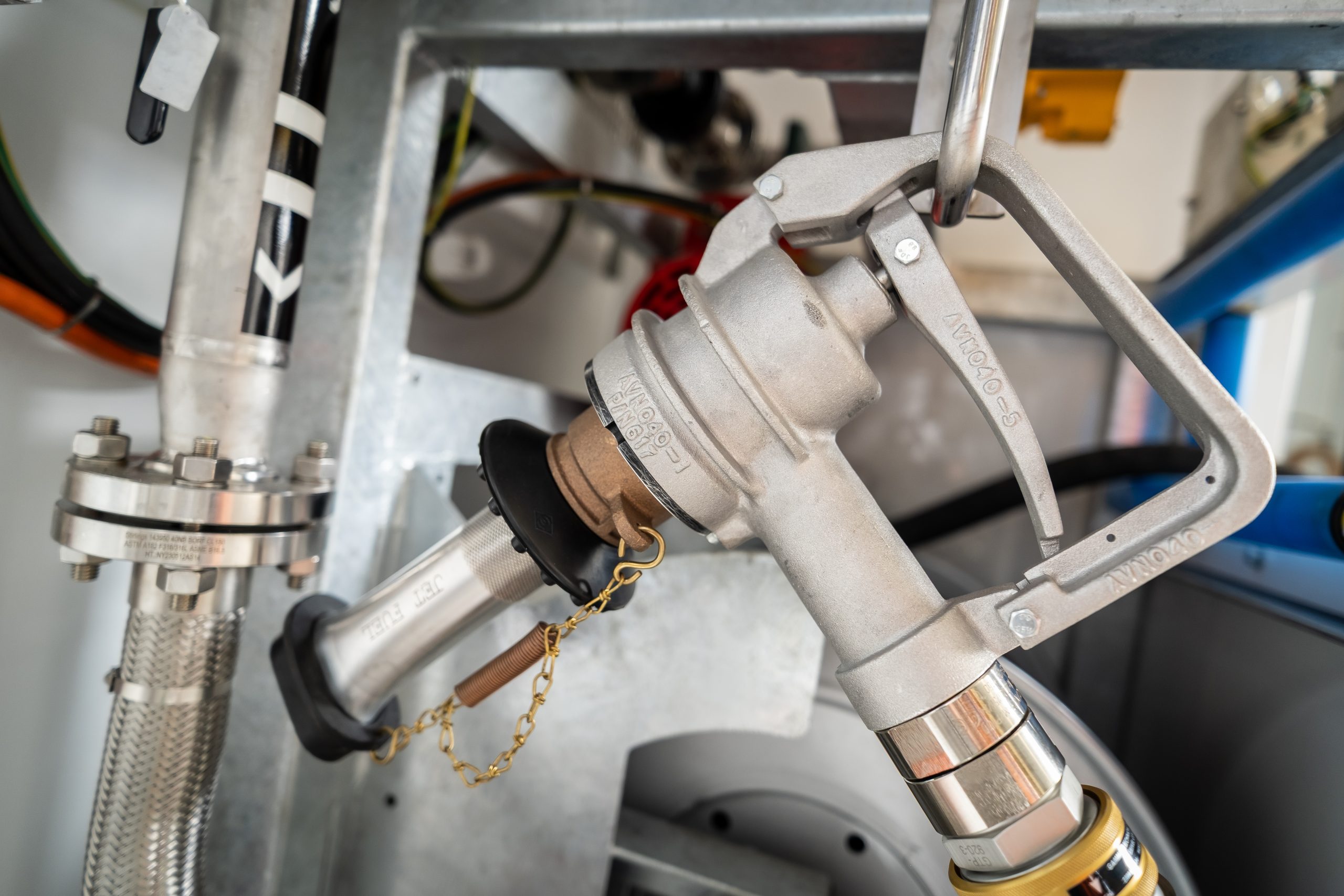

Liquip AVN & Eaton Carter Nozzles– Underwing and overwing refuelling with spill-free operation

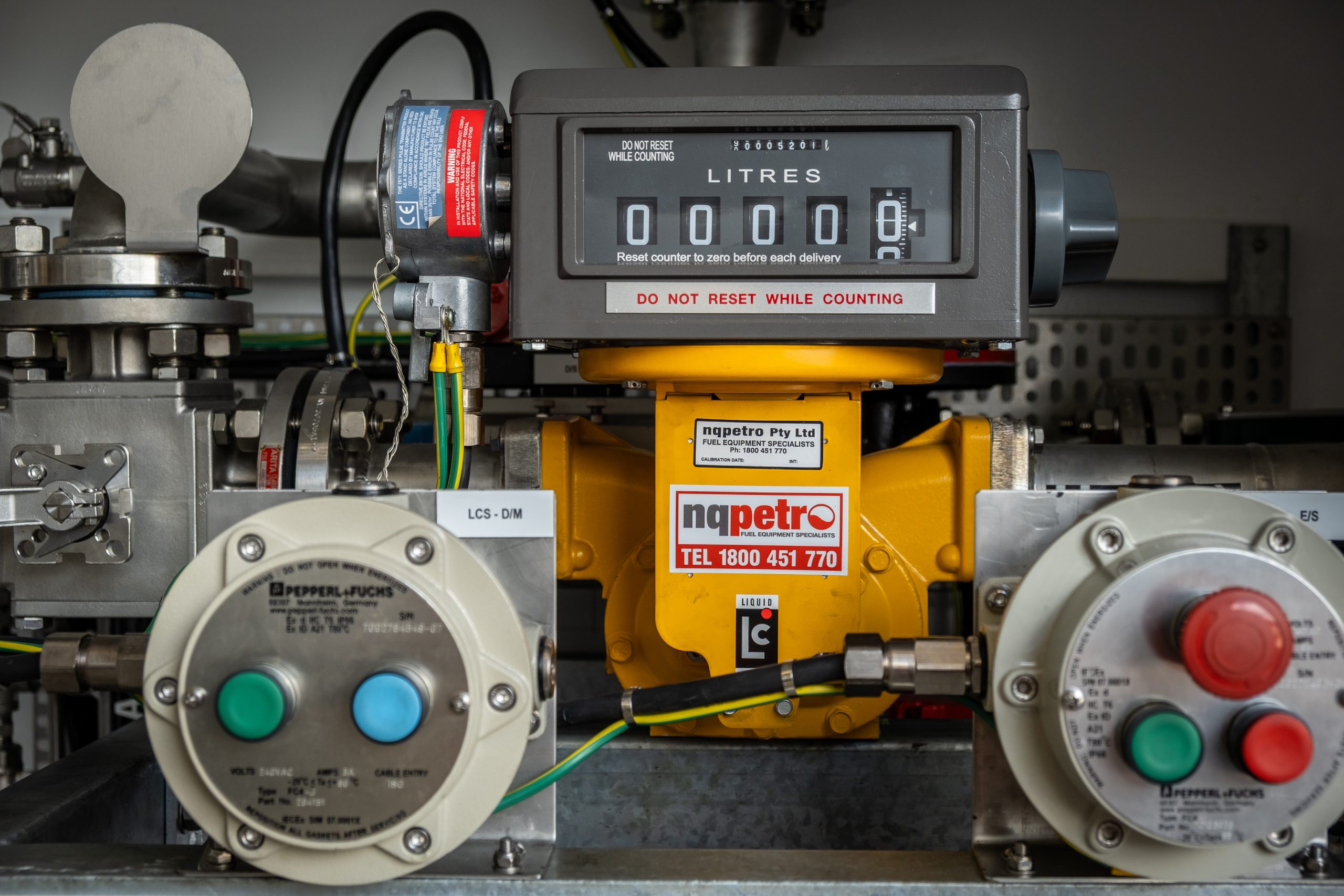

Sampi SM15K2 Metering System – Accurate fuel measurement with 100-500 LPM flow rates

Elaflex 1” x 30m Electric Return Hose Reel – Durable stainless-steel construction for safe fuel return

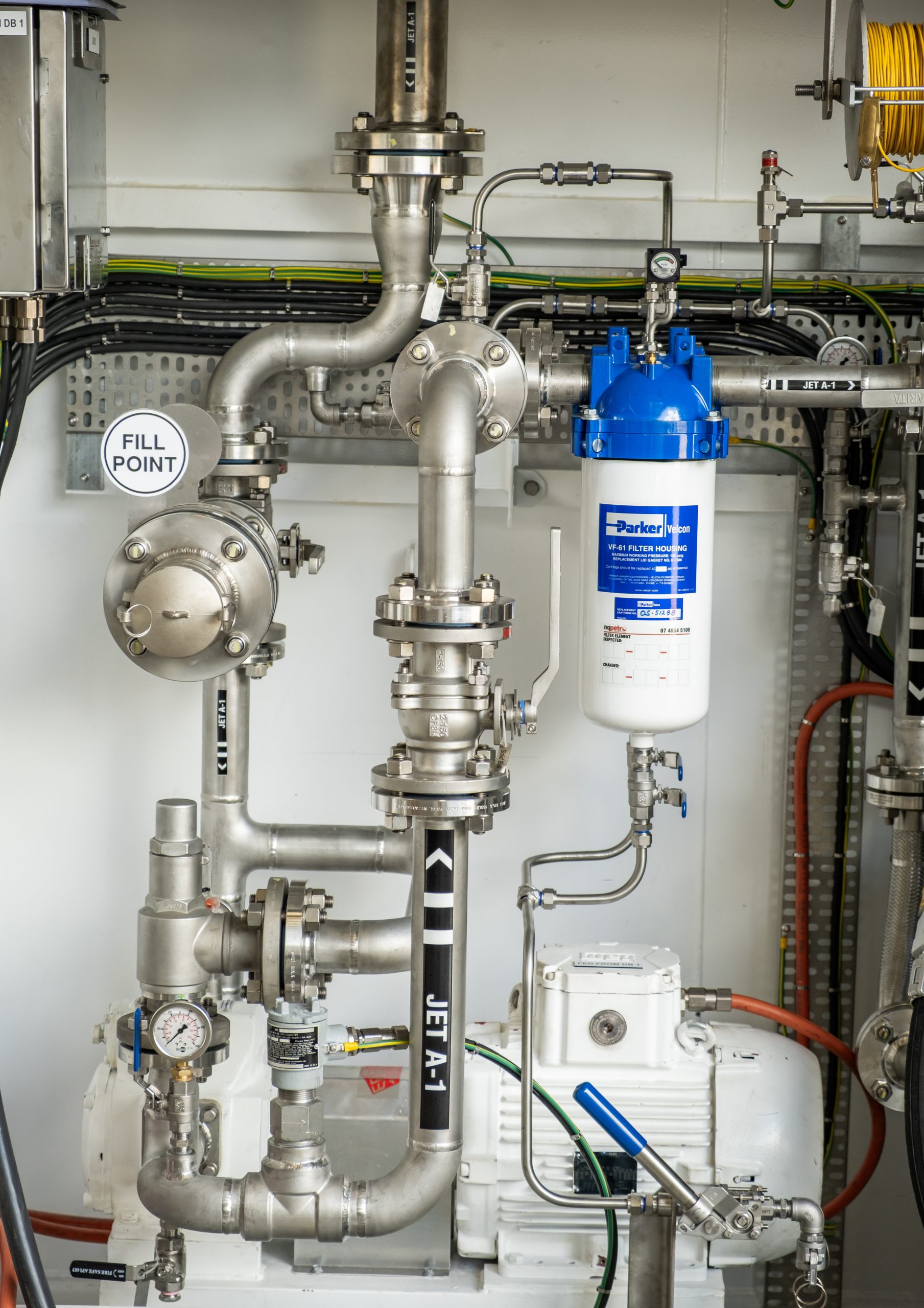

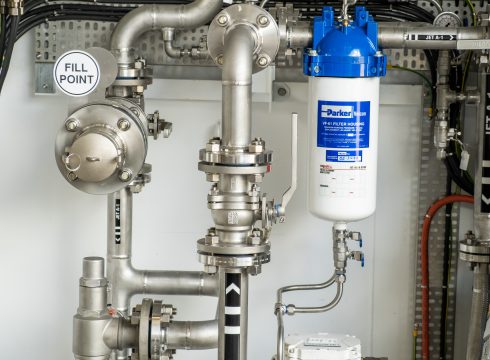

Dual Velcon VF-61 Filtration System – Removes ultra-fine contaminants down to 0.5 microns

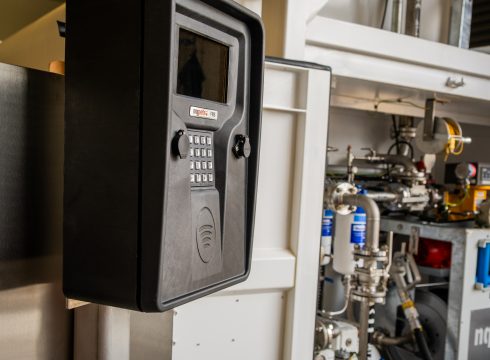

SmartFill Gen 3 Fuel Management System – Secure, real-time tracking with FOB or PIN authentication

Custom Jet A1 Refuelling System

Safety, Compliance & Control

Built to AS1940 standards, the system has undergone rigorous testing, compliance checks, and commissioning by our expert team. On-site training ensures operators can confidently manage the system from day one.

This advanced refuelling solution allows operators to switch effortlessly between underwing and overwing refuelling, reducing downtime and spill risks while ensuring precise control over every operation.

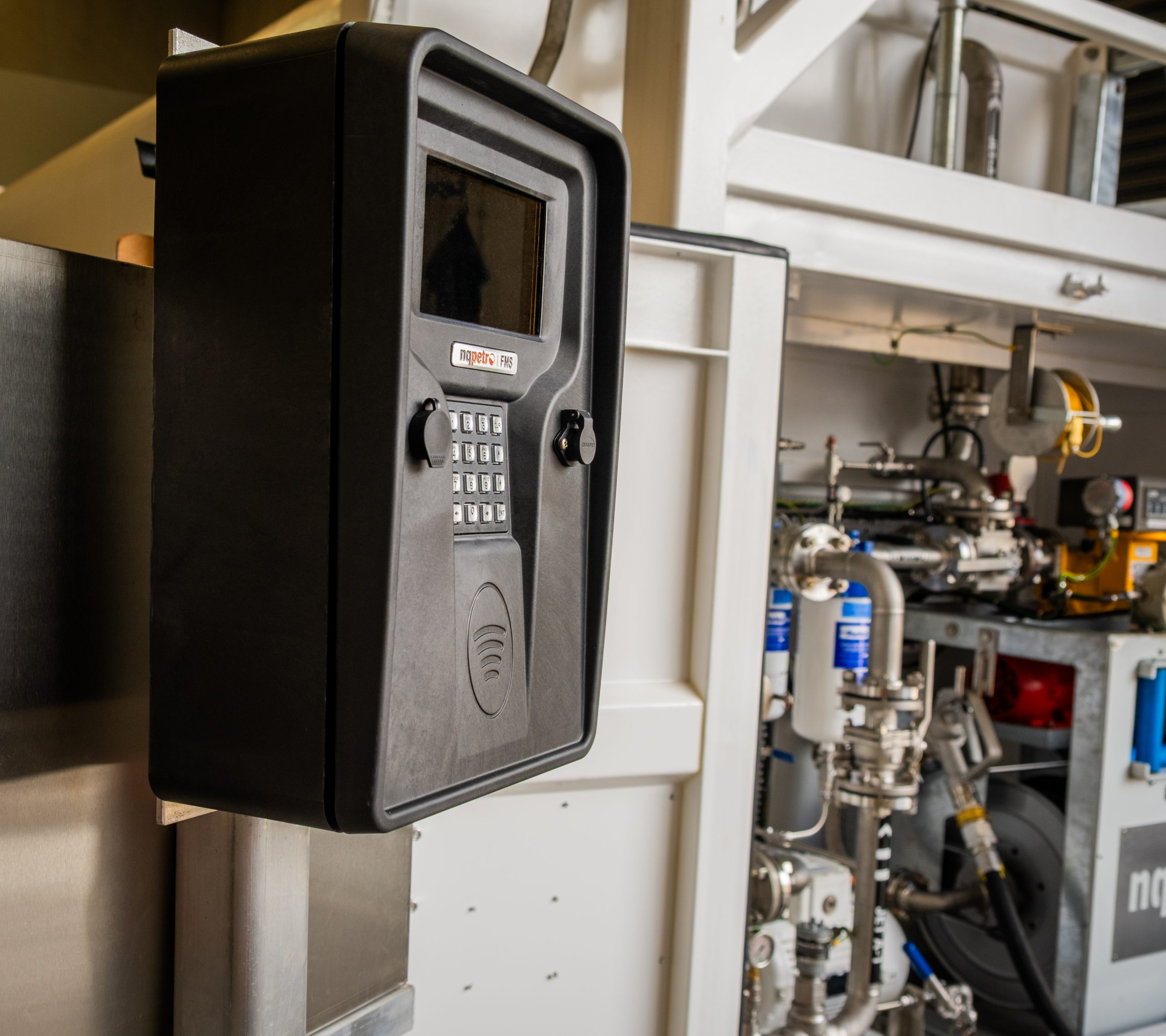

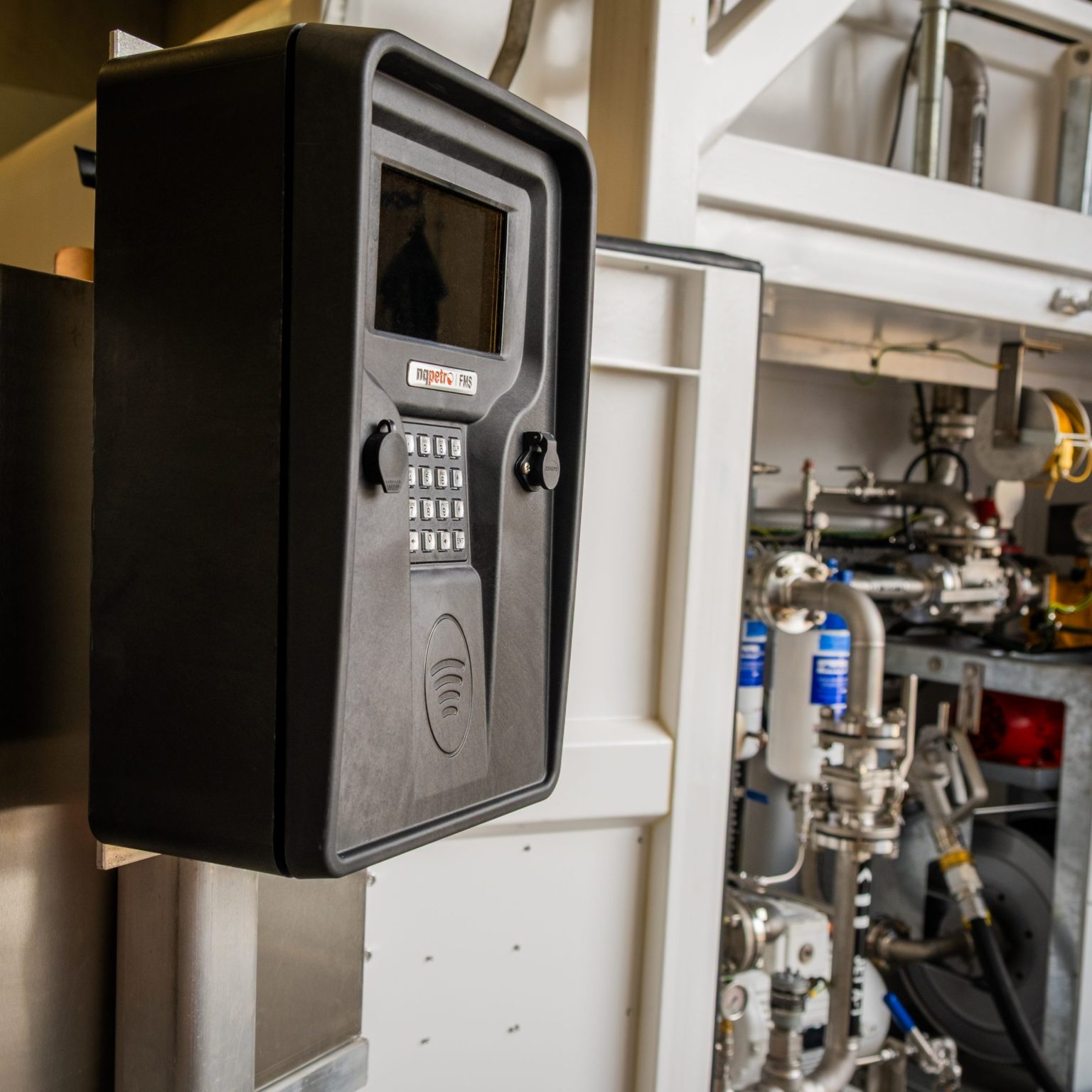

For added security and control, the integrated SmartFill fuel management system provides keypad or fob authentication and end-to-end fuel tracking with detailed transaction records and reporting.

At Nqpetro, we deliver custom hydrocarbon solutions built for the most demanding environments. Get in touch with our team to discuss your next fuel system project.
